| Working area | 1300*2500mm |
| Laser power | 150W/180W/200W/300W |

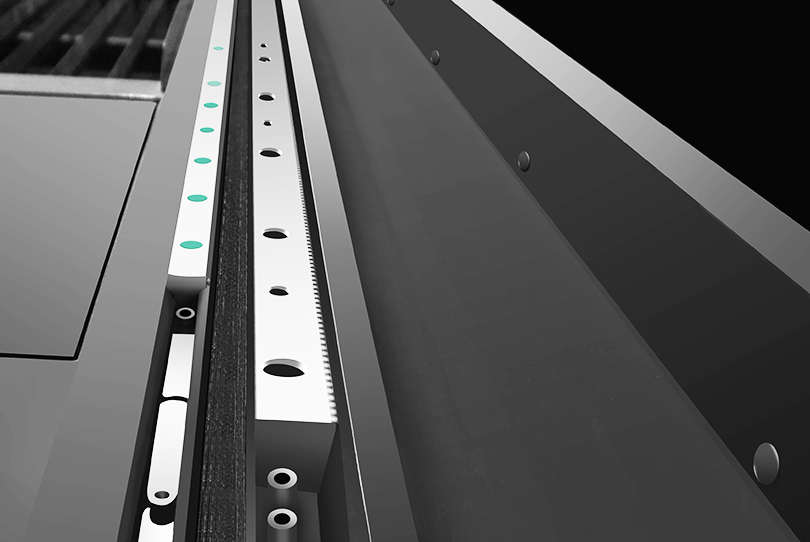

| Guide Rail | Imported linear guide rail |
| Transmission mode | X axis belt + Y axis rack gear/ X axis rack gear +Y axis rack gear(Optional) |
| Position accuracy | ±0.01mm |
| CCD Edge positioning | Optional |
| Motor System | Stepper Motor/Hybrid Servo+Reducer(optional) |
| Total power consumption | 2.5KVA(excluding laser system) |
| Laser system | Flying optical path design |
| Cooling system | Industrial Water Cooler (CW-5000/JZ-6000) |
| File Format | DXF 、AI、PLT、DST、DSB |
| Auxiliary system | Air pump ,blower,smoke absorbing device |
| Net weight(kg) | 900kg |
| Appearance Size | 3600X1900X1300mm |
+86 13823651588
Room 601, Building 5, Lianjian Optoelectronics Technology Park, No. 5 Tong'an Road, Xiqu District, Dayawan Economic and Technological Development Zone, Huizhou City

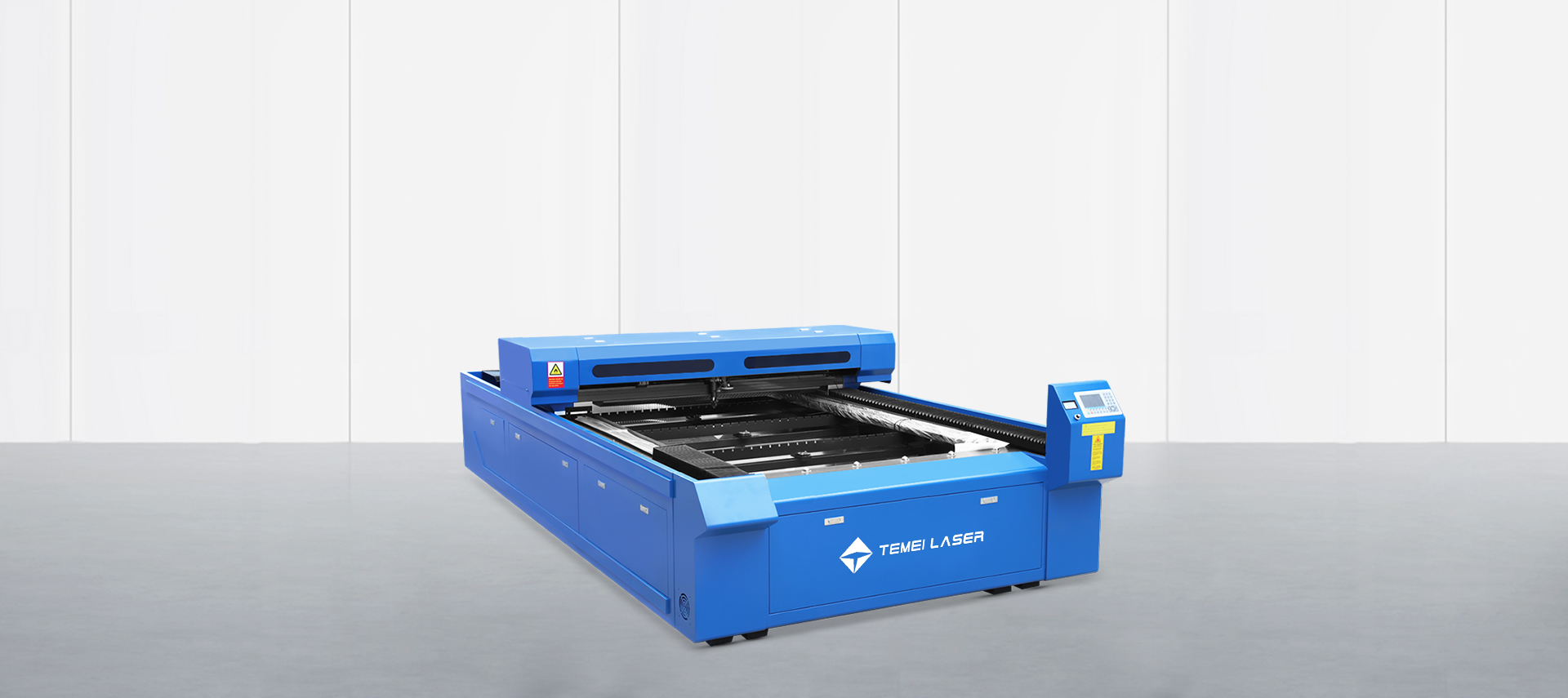

CO2 Laser Cutting Machine
