| I. Main Technical Parameters | |
| Type number | T5-L1313S |
| External dimensions | 2600mm×2100mm×1250mm |
| Working area | 1280mm*1280mm |
| Laser power | 300W |
| Laser wavelength | 10.6um |
| Laser cooling method | Industrial circulating cooling |
| Laser resolution | 0.025mm |
| Positioning accuracy | ±0.05mm |
| Cutting speed (mm/s) | ≤100 |
| Working temperature | 5-35℃ |
| Power supply standard | 220V/5OHz ±5% |
| Total power | Maximum 8KW |
| Support graphic formats | DXF、AI、PLT、DST、DSB |
| Optical path system | Constant light path design |
| II. Main Configuration | |
| Name | Specification |
| Laser tube | 300W |
| Control system | Ruida |
| Laser head | Non-metallic cutting head |
| Drive system | Mitsubishi servo motors and drives imported from Japan |
| Guide rail | Taiwan PMI |
| Lead screw | Taiwan TBI |
| Cooling system | CW6000 chiller |
| Countertop | Knife blade |
| Machine color | Yellow and black |
| Fan system | Air compressor (to be prepared by yourself) |
| Ventilation system | 1.1KW+550w |
| Machine language | Chinese/English |
| Packaging | Film |
| Net weight of the machine | 800KG |
| Machine size | 2600mm×2100mm×1250mm |
+86 13823651588
NO.2 Buliding 4, shangxue science park, Jihua road, Bantian Street, Longgang District, Shenzhen, China.

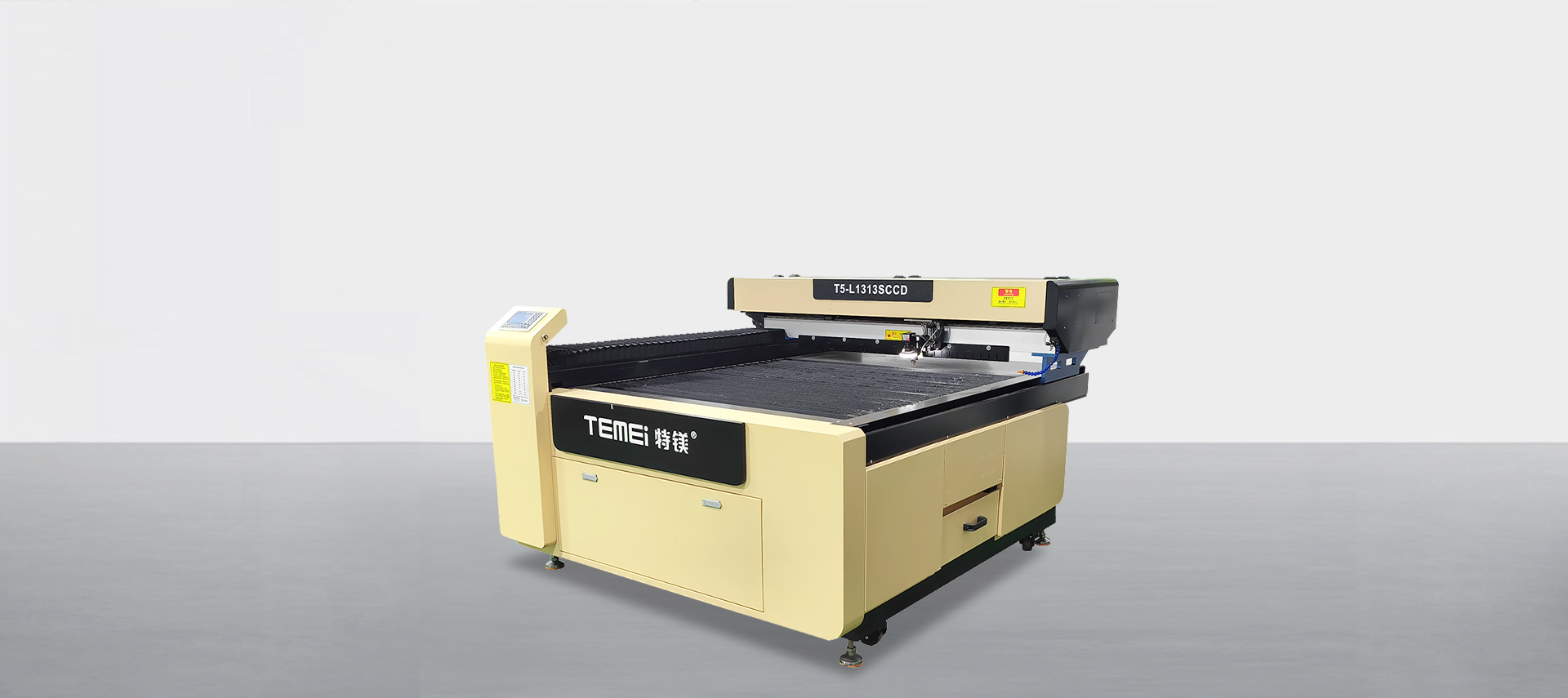

CO2 Laser Cutting Machine
